Description

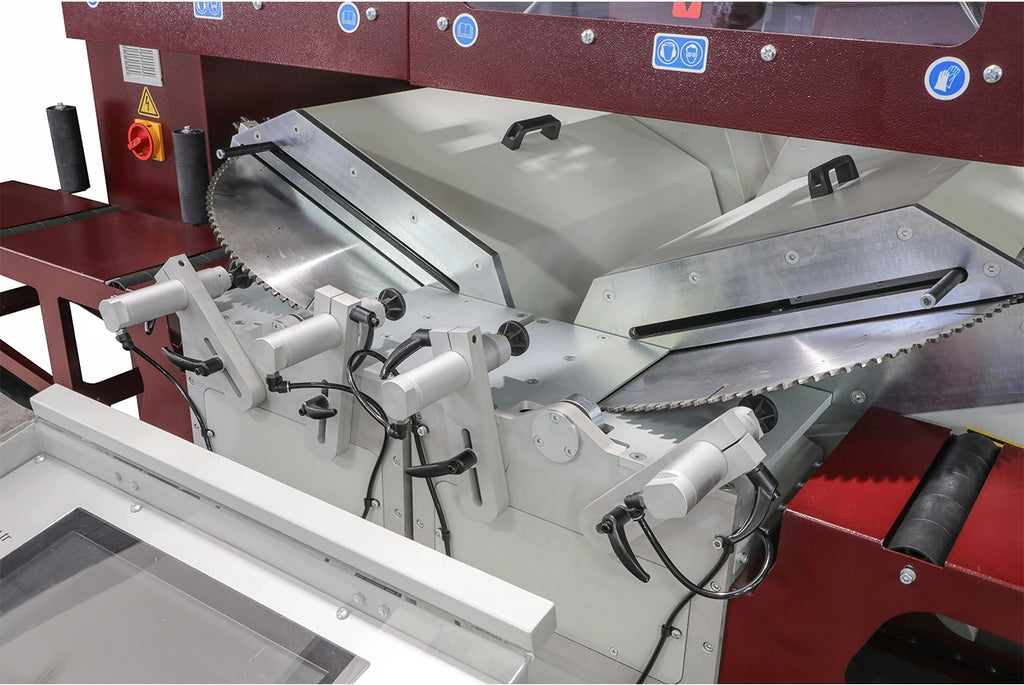

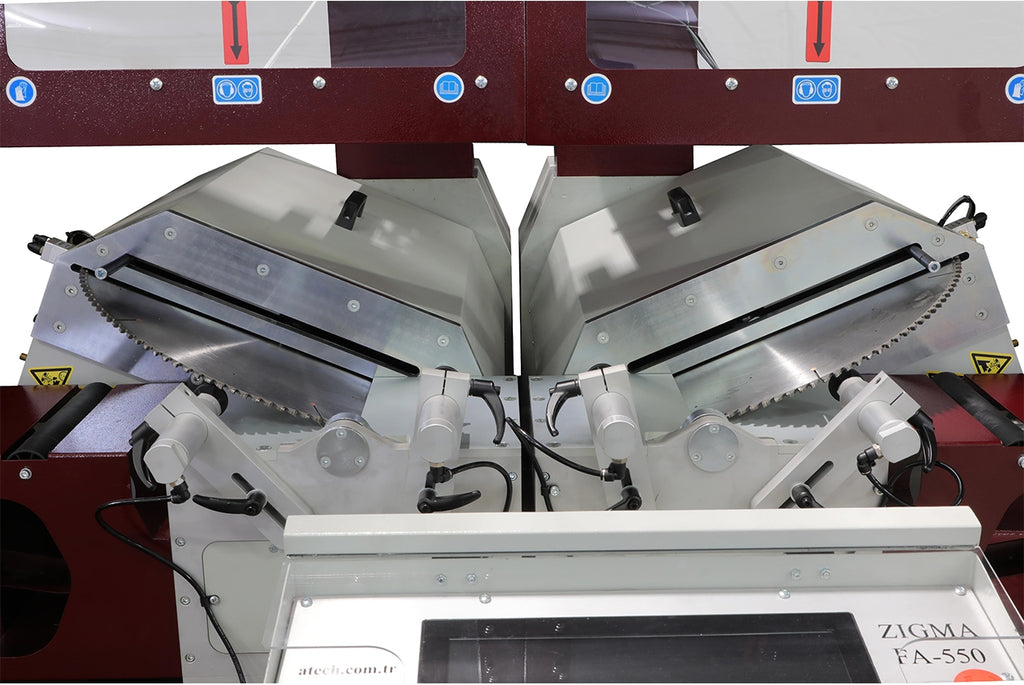

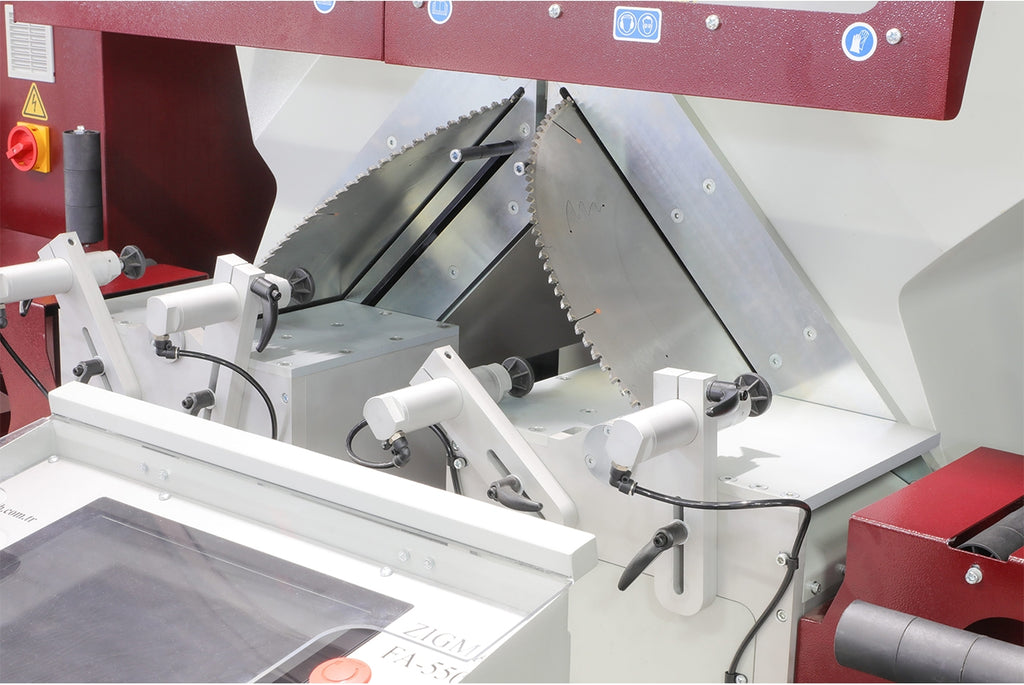

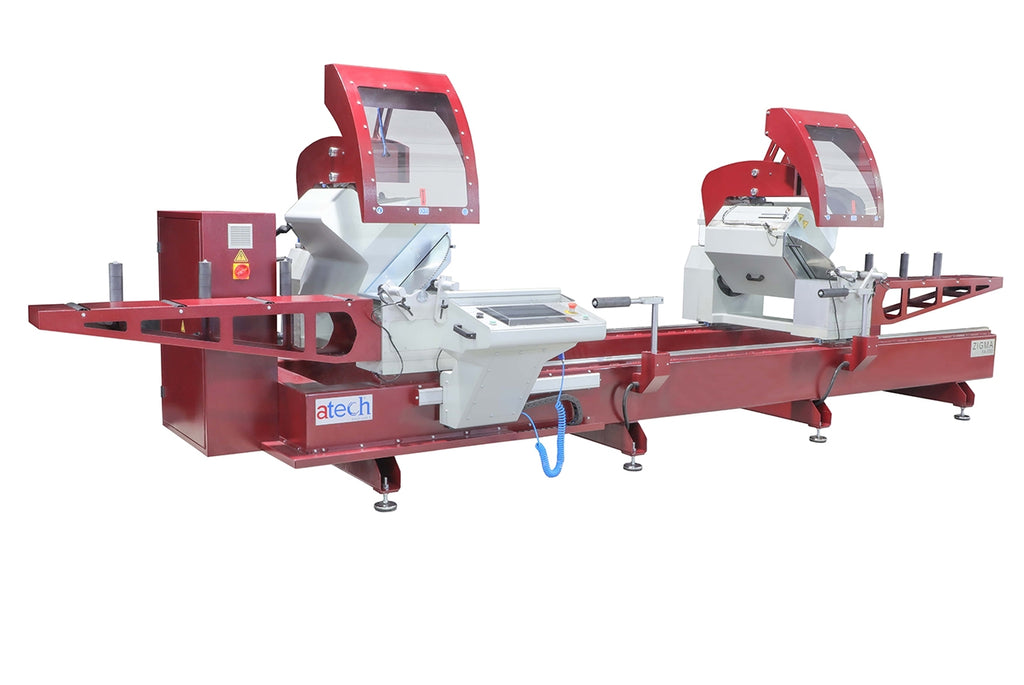

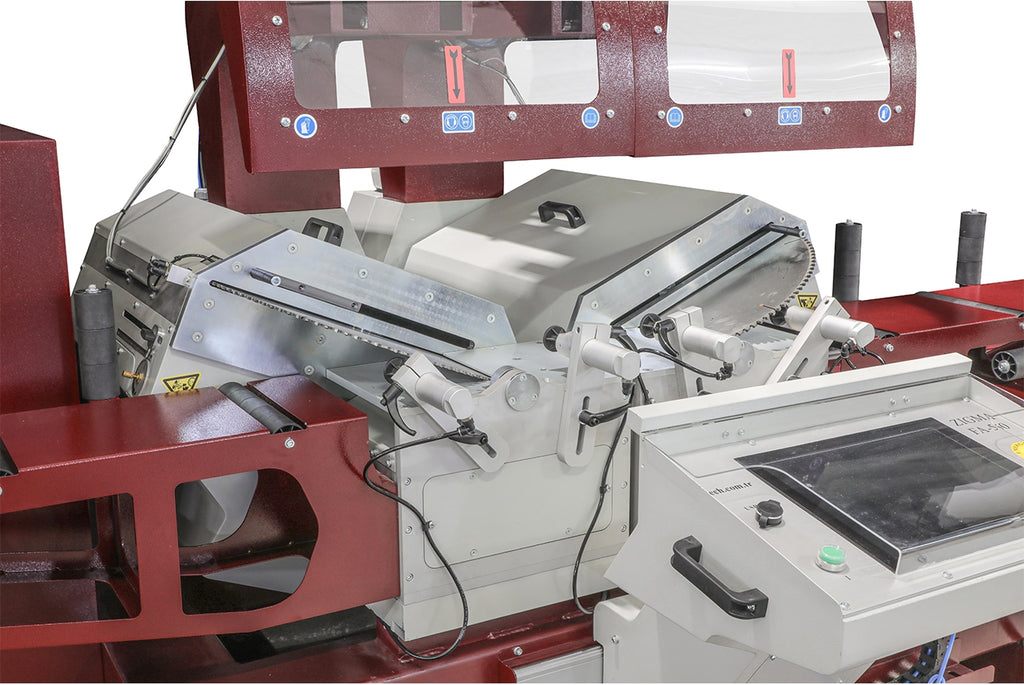

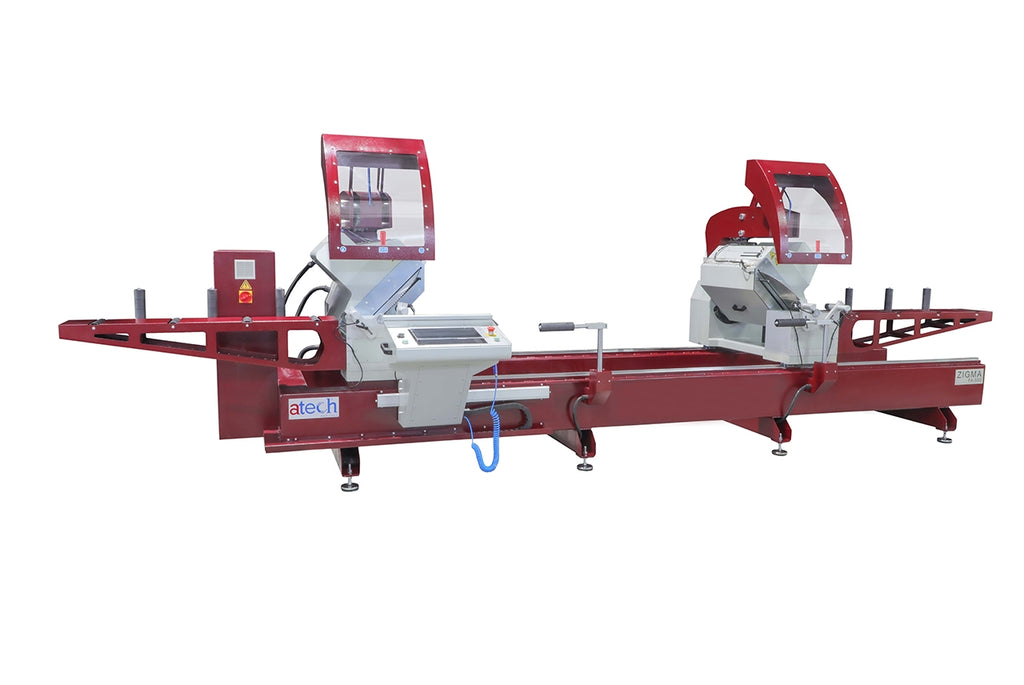

Zigma-06 FA is a heavy-duty full automatic double-head CNC miter saw equipped with 22″ (550 mm) carbide-tipped saw blade, and designed for straight and miter cut of aluminum, vinyl profiles and wood.
GENERAL FEATURES- 2 x 3,0 kW Motor
- 15” PC touch screen
- With its servo motor the head angles and head movements can be positioned precisely
- By servo motor angles between -22,5 and +45 can be positioned automatically.
- Robust machine body
- With a hydro-pneumatic cutting unit the speed of the blade can be adjusted precisely.
- The saw blade stroke is adjustable from the top. That means, that you can limit how far the saw blade comes out.
- Cuts greater than the strok
- Slicing, angle slicing, pieces of cutting profiles list and etc. are programmable.
- Equipped with modem for remote access for online servicing and programming
- 2 x Ø550 mm saw blades
- 4 pcs. Horizontal clamps
- Spray lubrication system
- Airgun
- Conveyor on movable saw head
- 2 pcs. profile rest system
- Barcode Reader
- Spray mist lubrication system
- 2 pcs. Vertical clamps.
- Chip collector monifold
- 4,0 kW Electric motor
- Conveyor on fixed saw head
$74,900 for this Demo Unit. New Price is $82,390
