Description

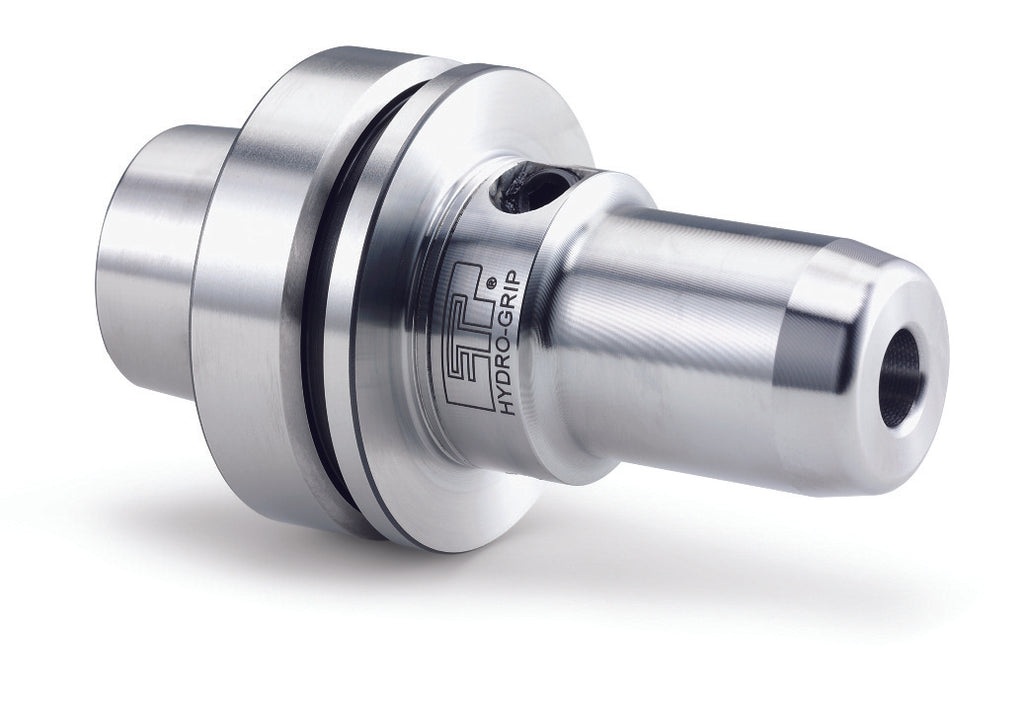

ETP HG G2 SLENDER 1" HSK63F HYDRO GRIP TOOL HOLDER

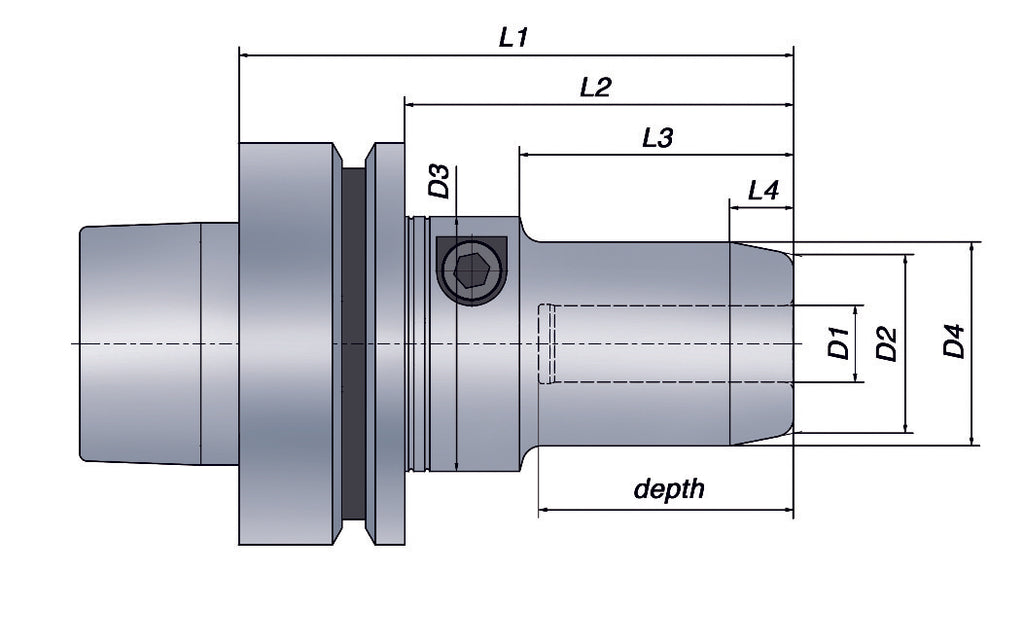

Dimensions
Tool diameter D1 mm | 25.4 mm |
---|---|
Dimension D2 mm | 41 mm |
Dimension D3 mm | 50 mm |
Dimension D4 mm | 45 mm |
Gauge length L1 mm | 103 mm |
Dimension L2 mm | 77 mm |
Dimension L3 mm | 59 mm |
Dimension L4 mm | 10 mm |
Tool insert depth | 56 mm |
Technical Specifications
Range | Inch |
---|---|
Machine interface | HSK |
HSK size | 63F |
Transmittable torque (T) Nm | 480-710 Nm |
Tool shank tolerance | h6 or h7 |
Runout accuracy | ≤ 0.004 mm at 2.5 x D1 (max. 50 mm). |
Balance degree | G 2.5 at 25 000 rpm |
Weight | 1.4 kg |
Features
Area of application | Semi-Roughing, Finishing, Contour Milling, Drilling, Reaming, Tapping, Thread Milling |
---|---|
I´m most interested in | Long reach |
Internal coolant | Yes |
Bore for Data carrier | No |
Tool Length adjustment | Yes (center thread M10x1.5) |
Product type | Chucks |
ETP Product group | HYDRO-GRIP SLENDER |
