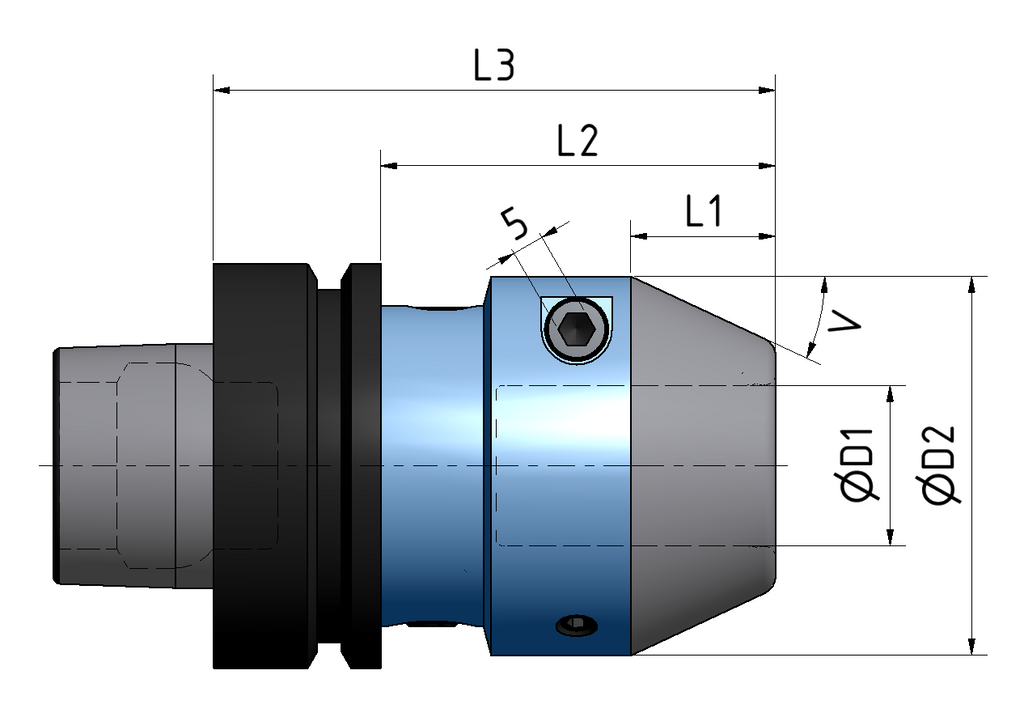

| Tool diameter D1 mm |
12.7 mm |
| Dimension D2 mm |
45 mm |
| Dimension L1 mm |
4.5 mm |
| Dimension L2 mm |
43.5 mm |
| Dimension L3 mm |
69.5 mm |
| Tool insert depth |
25.5 mm |
| Dimension V° |
65 degree |
| Dimension N mm |
5 mm |
| Range |
Inch |
| Machine interface |
HSK |
| HSK size |
63F |
| Tool shank tolerance |
h6 or h7 |
| Runout accuracy |
≤ 0.006 mm at 3 x D1 |
| Balance degree |
G 2.5 at 25 000 rpm |
| Transmittable torque (T) Nm at h6 |
25 Nm |
| Transmittable torque (T) Nm at h7 |
15 Nm |
| I´m most interested in |
Short overhang |
| Tool Length adjustment |
No |

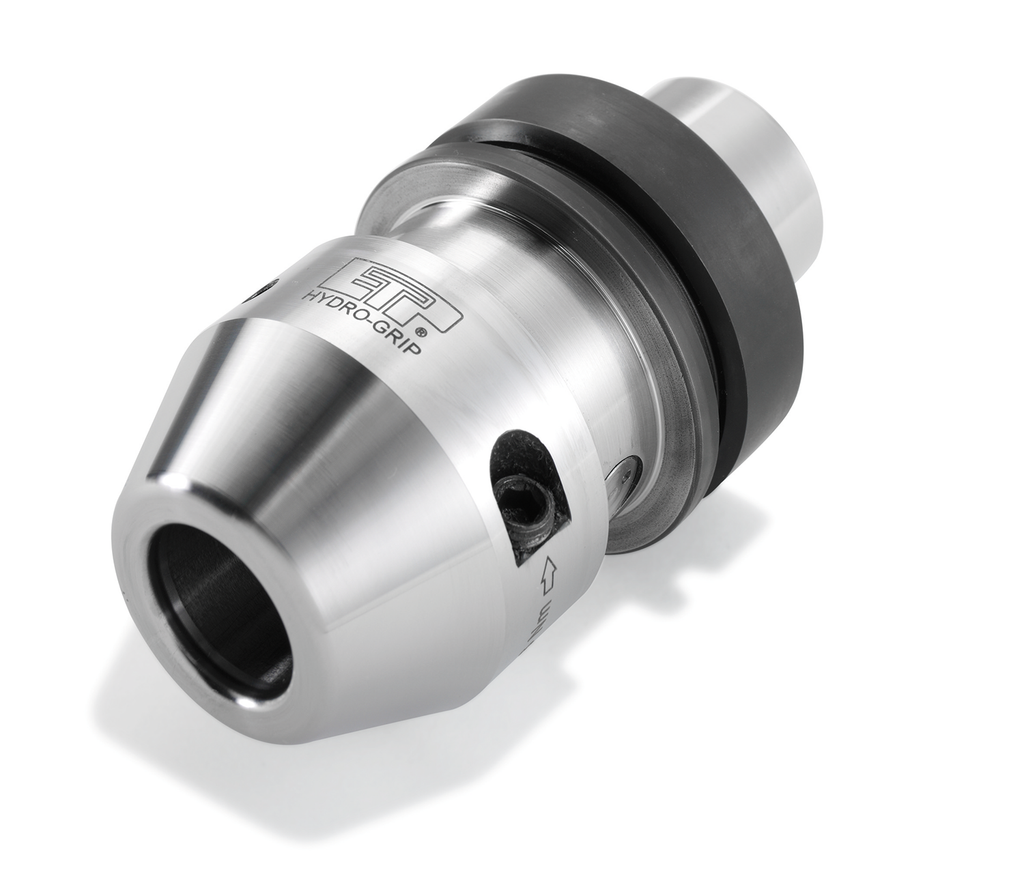

| Product type |
Chucks |
| ETP Product group |
HYDRO-GRIP G3 |
