Description

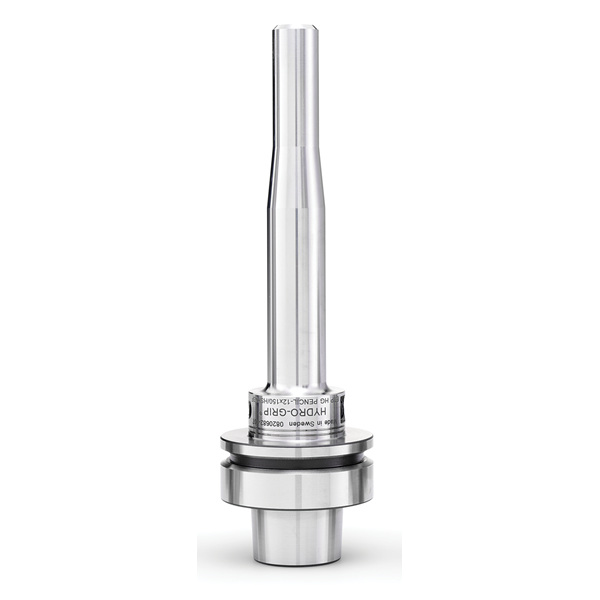

ETP HG PENCIL 1/2" X 150 HSK63F HYDRO GRIP TOOL HOLDER

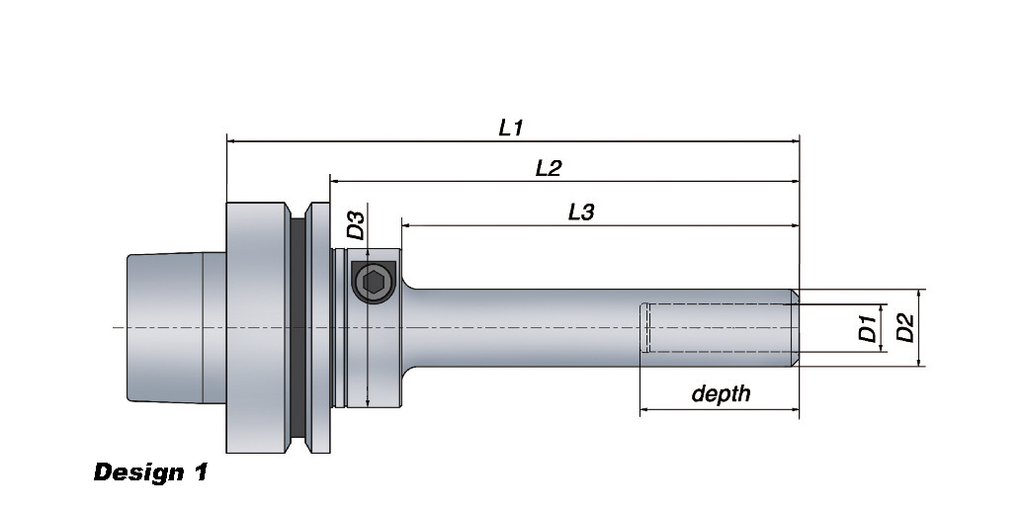

Dimensions
| Tool diameter D1 mm | 12.7 mm |
|---|---|
| Dimension D2 mm | 19.5 mm |
| Dimension D3 mm | 40 mm |
| Dimension D4 mm | 24.5 mm |
| Gauge length L1 mm | 194 mm |
| Dimension L2 mm | 168 mm |
| Dimension L3 mm | 150 mm |
| Dimension L4 mm | 75 mm |
| Dimension L5 mm | 50 mm |
| Tool insert depth | 40 mm |
Technical Specifications
| Range | Inch |
|---|---|
| Machine interface | HSK |
| HSK size | 63F |
| Transmittable torque (T) Nm | 60-125 Nm |
| Tool shank tolerance | h6 or h7 |
| Runout accuracy | ≤ 0.007 mm at 2.5 x D1 at lenght L1 > 125 mm. |
| Balance degree | G 2.5 at 10 000 rpm |
| Weight | 1.2 kg |
Features
| Design | Design 2 |
|---|---|
| Area of application | Finishing, Plunging, Contour Milling, Drilling, Reaming |
| I´m most interested in | Long reach |
| Internal coolant | Yes |
| Bore for Data carrier | No |
| Tool Length adjustment | No |
| Product type | Chucks |
| ETP Product group | HYDRO-GRIP PENCIL |
