Description

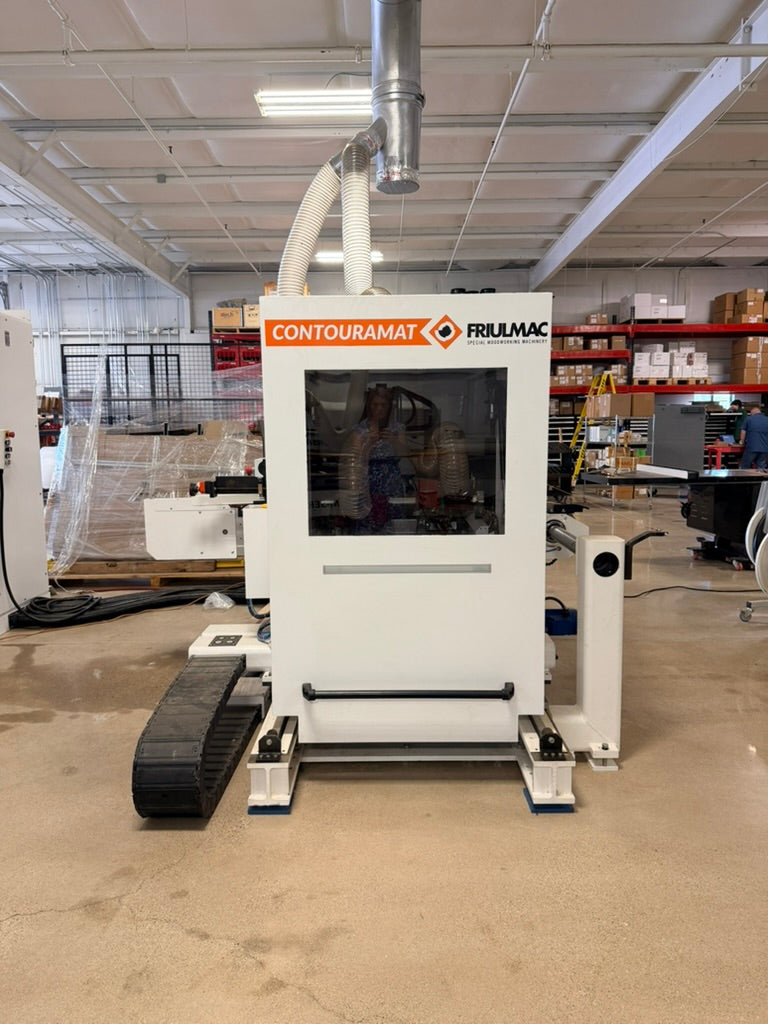

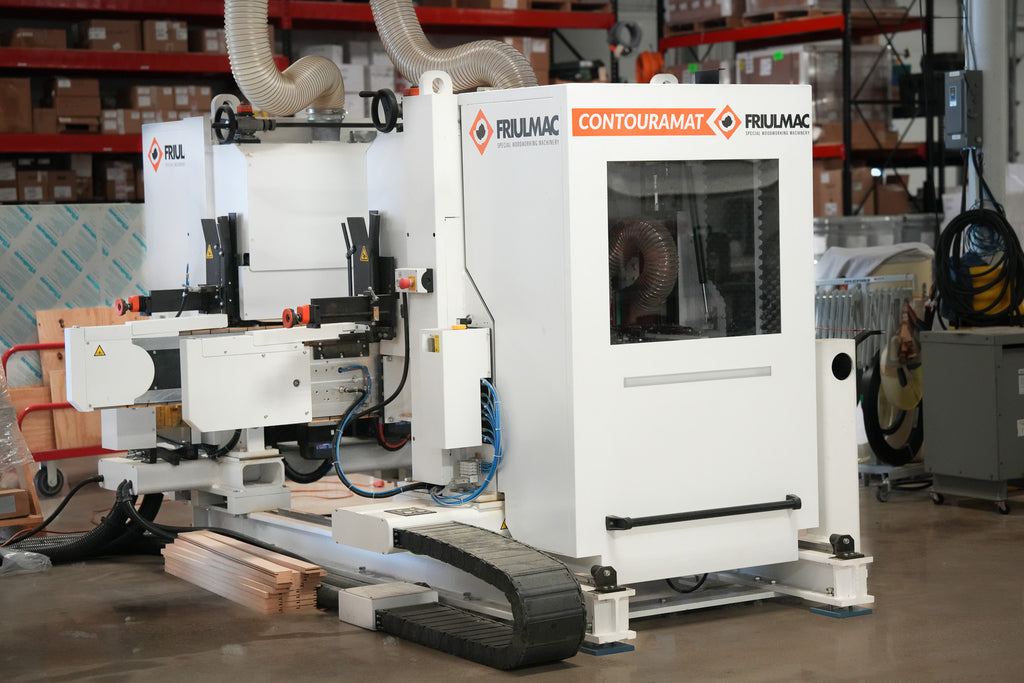

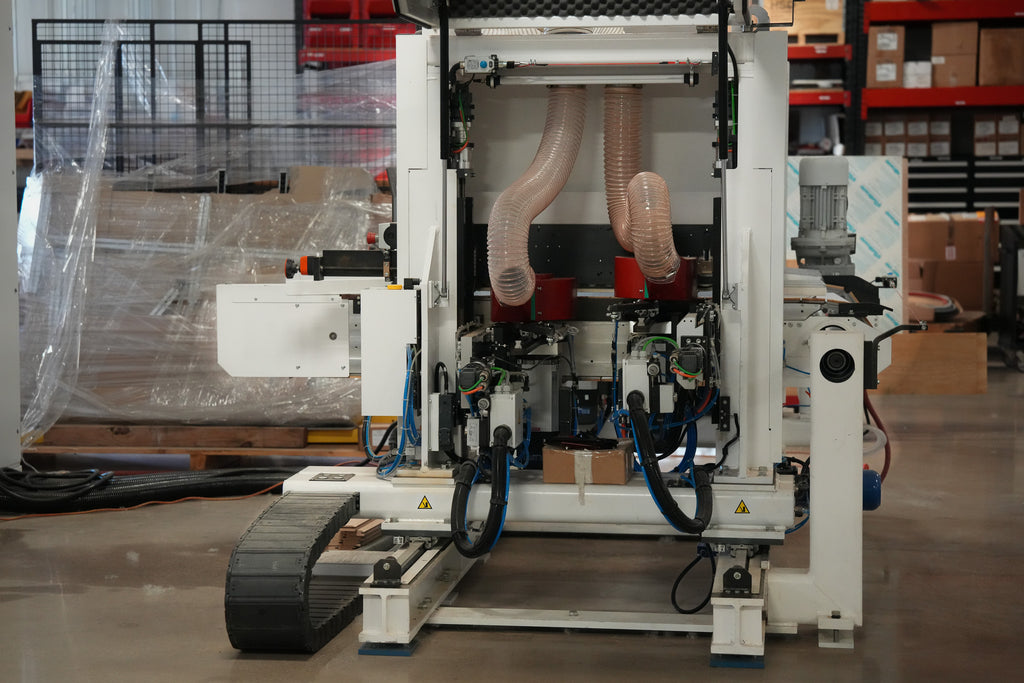

Friulmac Model Quadramat-E Double End Tenoner
Cabinet Door Rail Processing Machine – Cope Profiles
Capacity – 40 Parts per minute
Part Size Capacity:
Length: min 127 mm (5”) – max 1500 mm (59.05”)
Width: min 50 mm (1.96”) – max 200 mm (7.87”)
Thickness: min 12 mm (0.47”) – max. 35 mm (1.37”)
Width: min 50 mm (1.96”) – max 200 mm (7.87”)
Thickness: min 12 mm (0.47”) – max. 35 mm (1.37”)
Notes: Inside profile, max. profile depth 12.7 mm each side

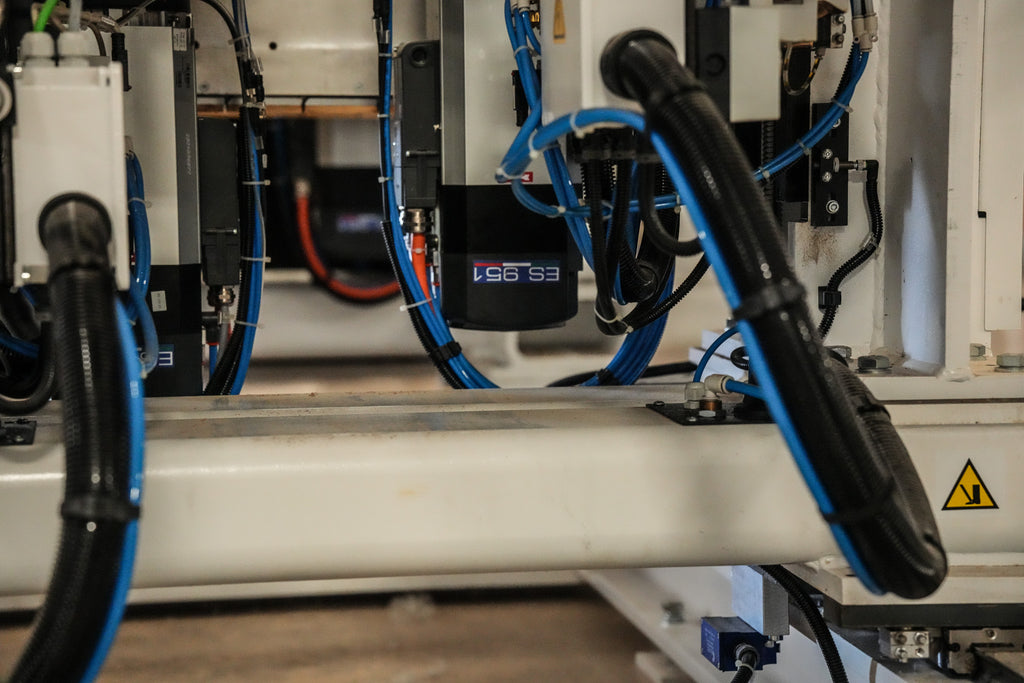

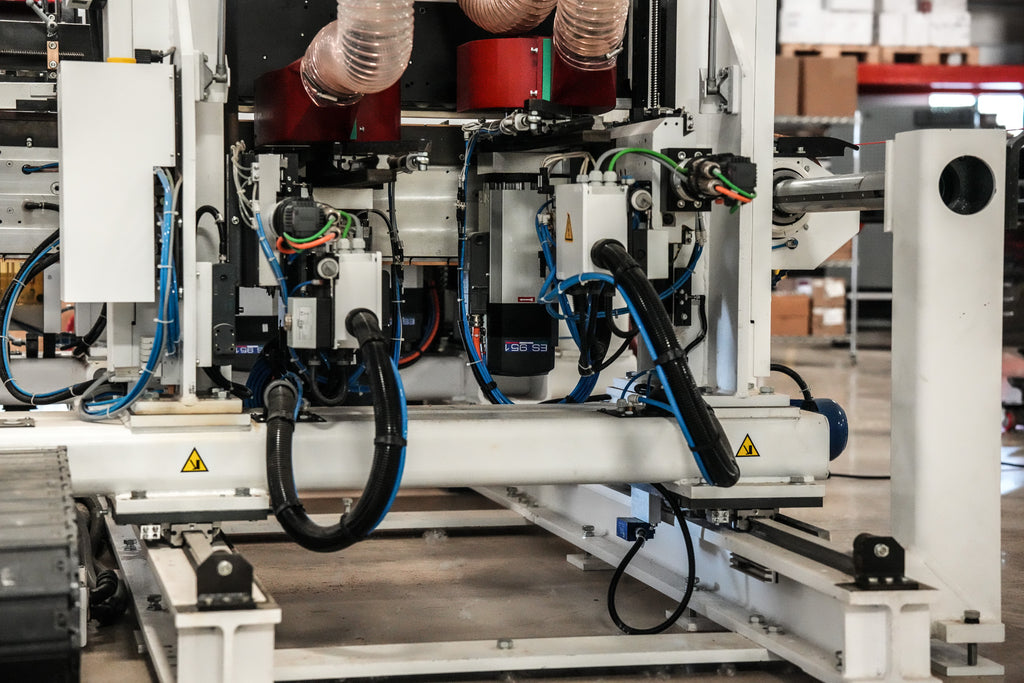

Hopper Feeder System Spindle Configuration: -Jump Cope Station – HSD ES 951 Spindles – 6KW – 8 HP HSK63F Tool Holders for quick changeovers between profiles -Cope Station – HSD ES 951 Spindles – 6KW – 8 HP HSK63F Tool Holders for quick changeovers between profiles
